Advanced Building Technology: Residential Construction (ARCH 410)- Assignment was to create a 500 sq ft residence structurally supported, equipped with full mechanical, electrical, and plumbing systems.
View of interior - the living/dining quarters are connected with the loft space sitting atop the main staircase that runs along the west wall. The bathroom is tucked beneath the loft adjacent to the kitchen

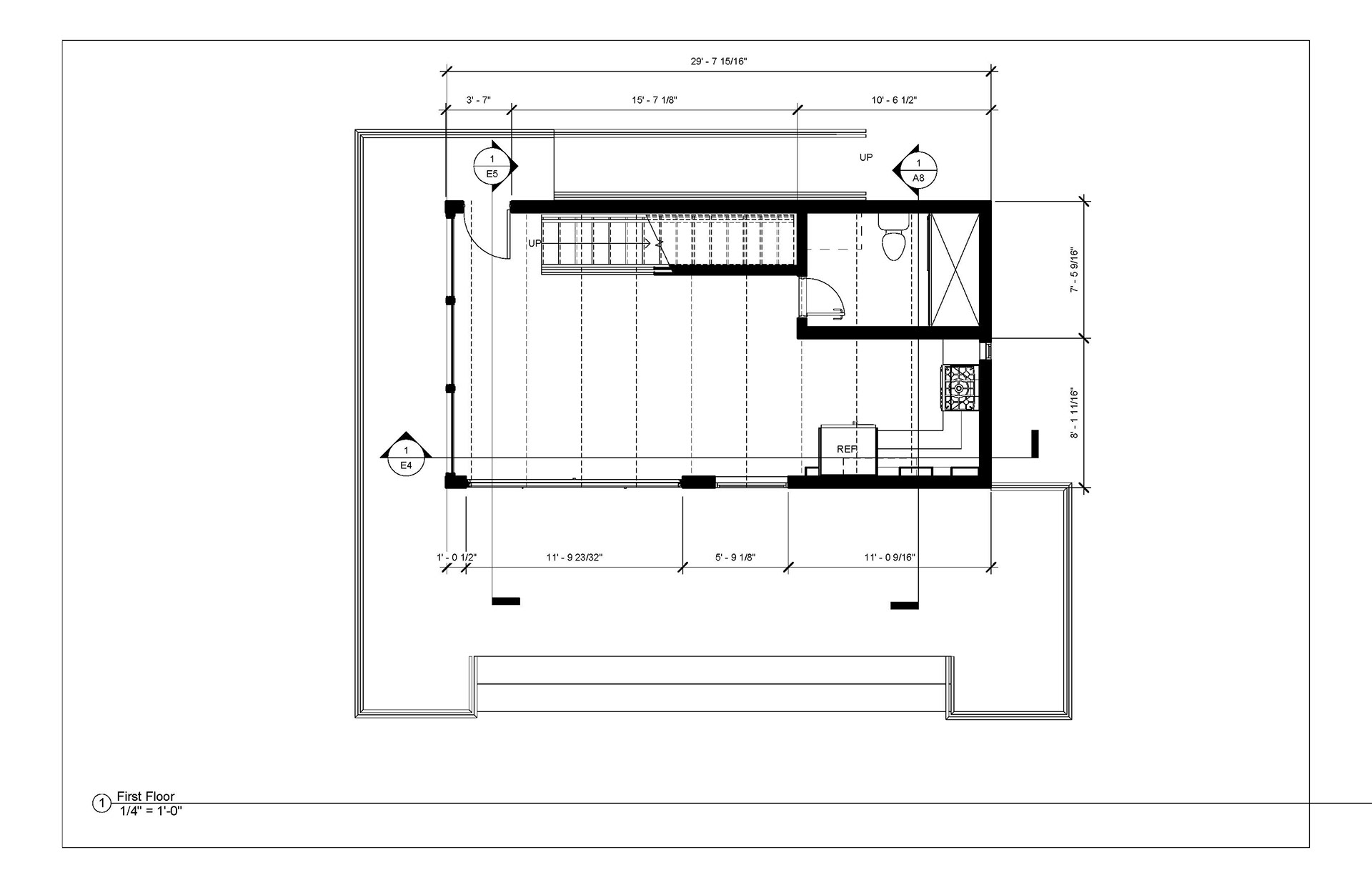

Ground Floor- approximately 500 sq ft; timber frame construction with steel and glass shear wall; slab on grade foundation

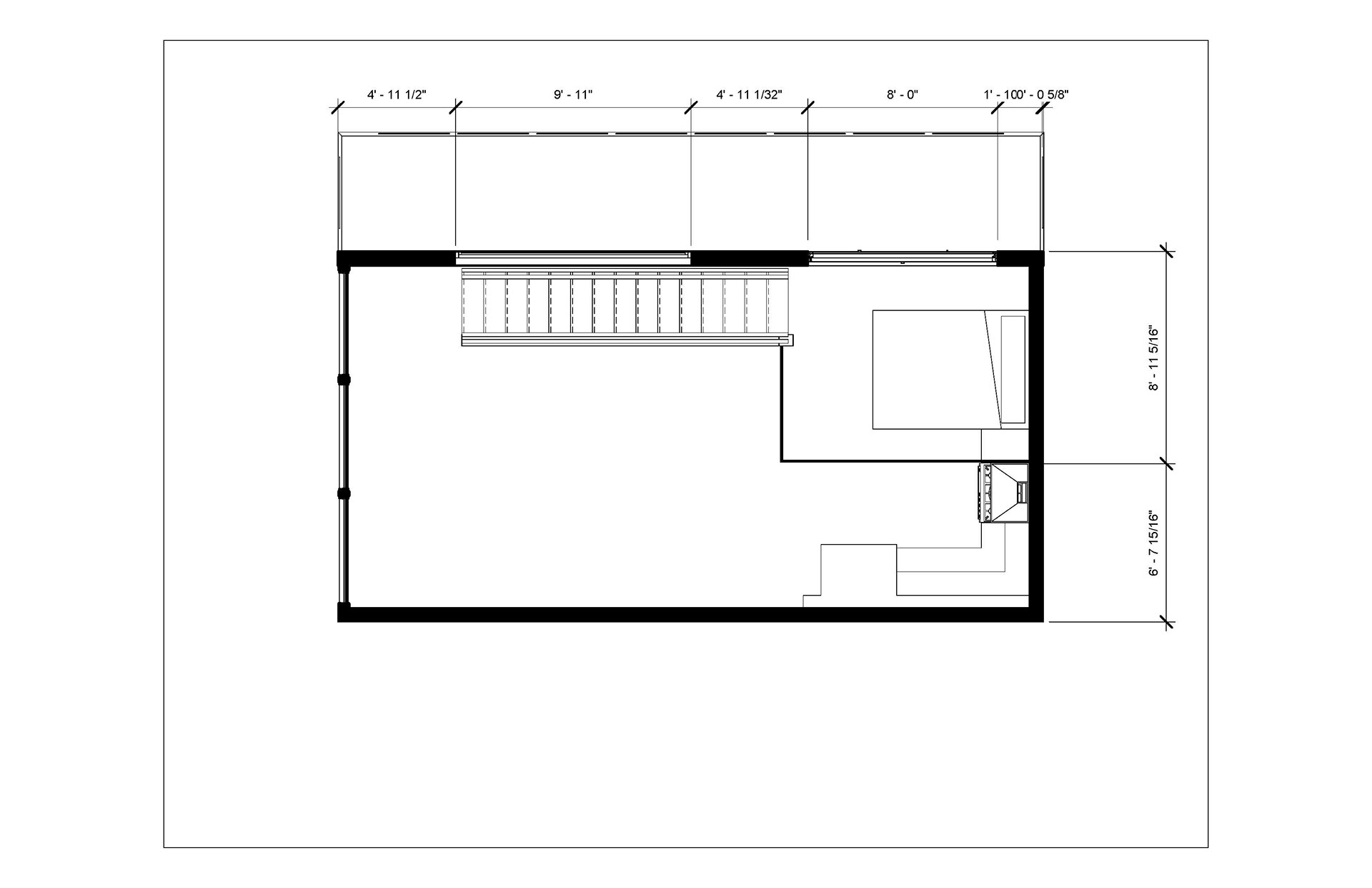

Loft space - access to balcony

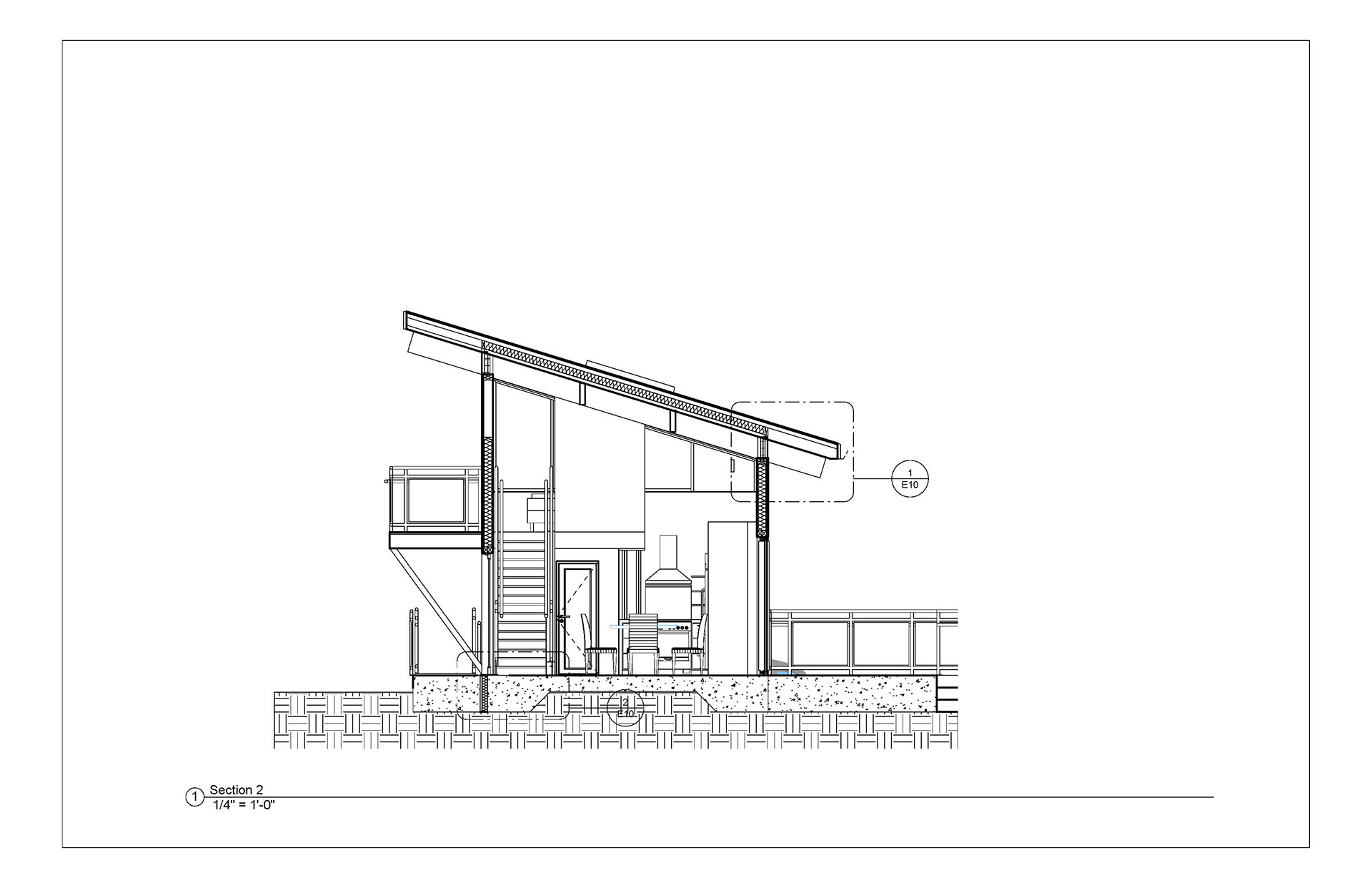

Cross Section of house

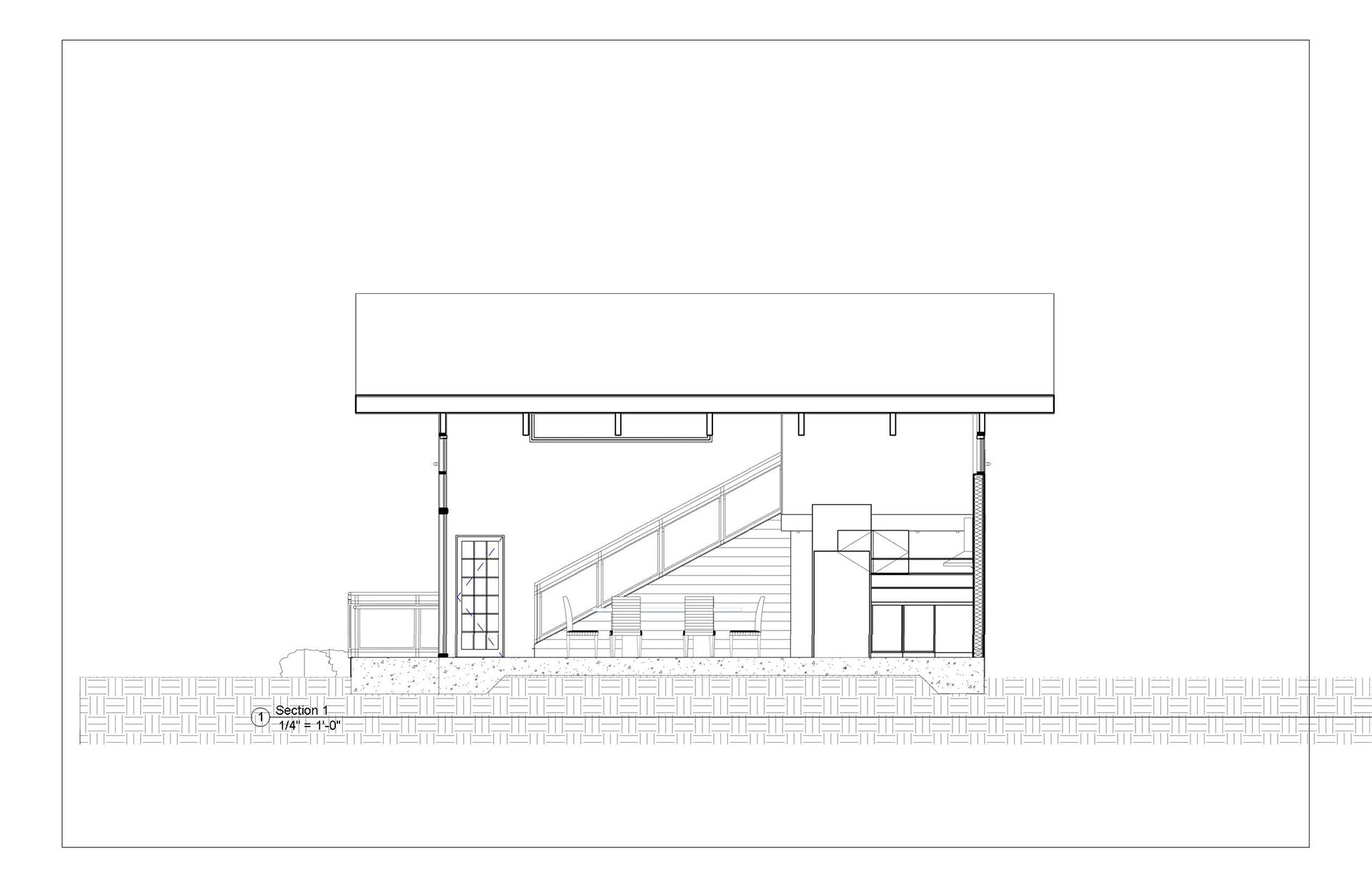

South Section

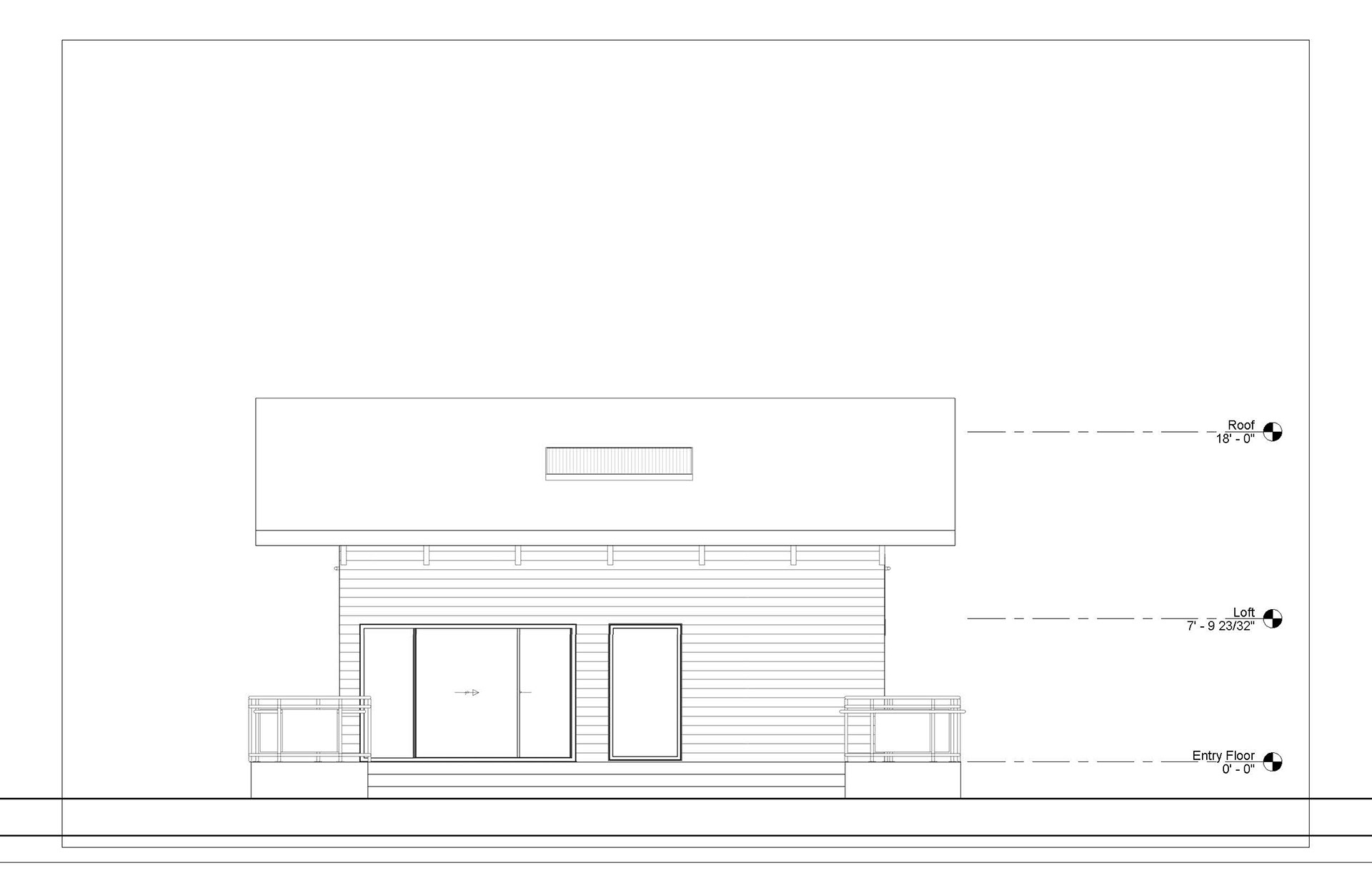

North Elevation

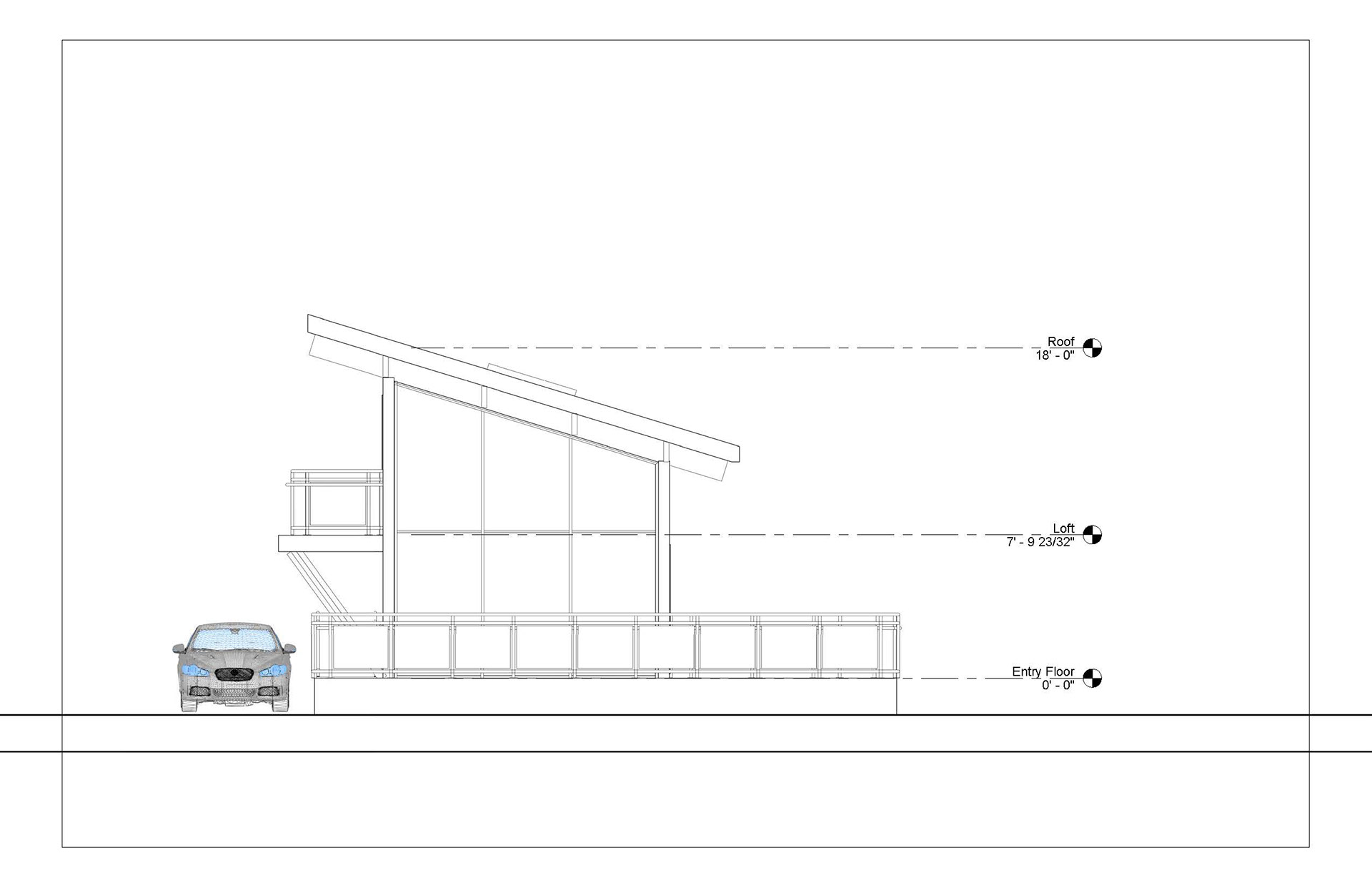

West Elevation

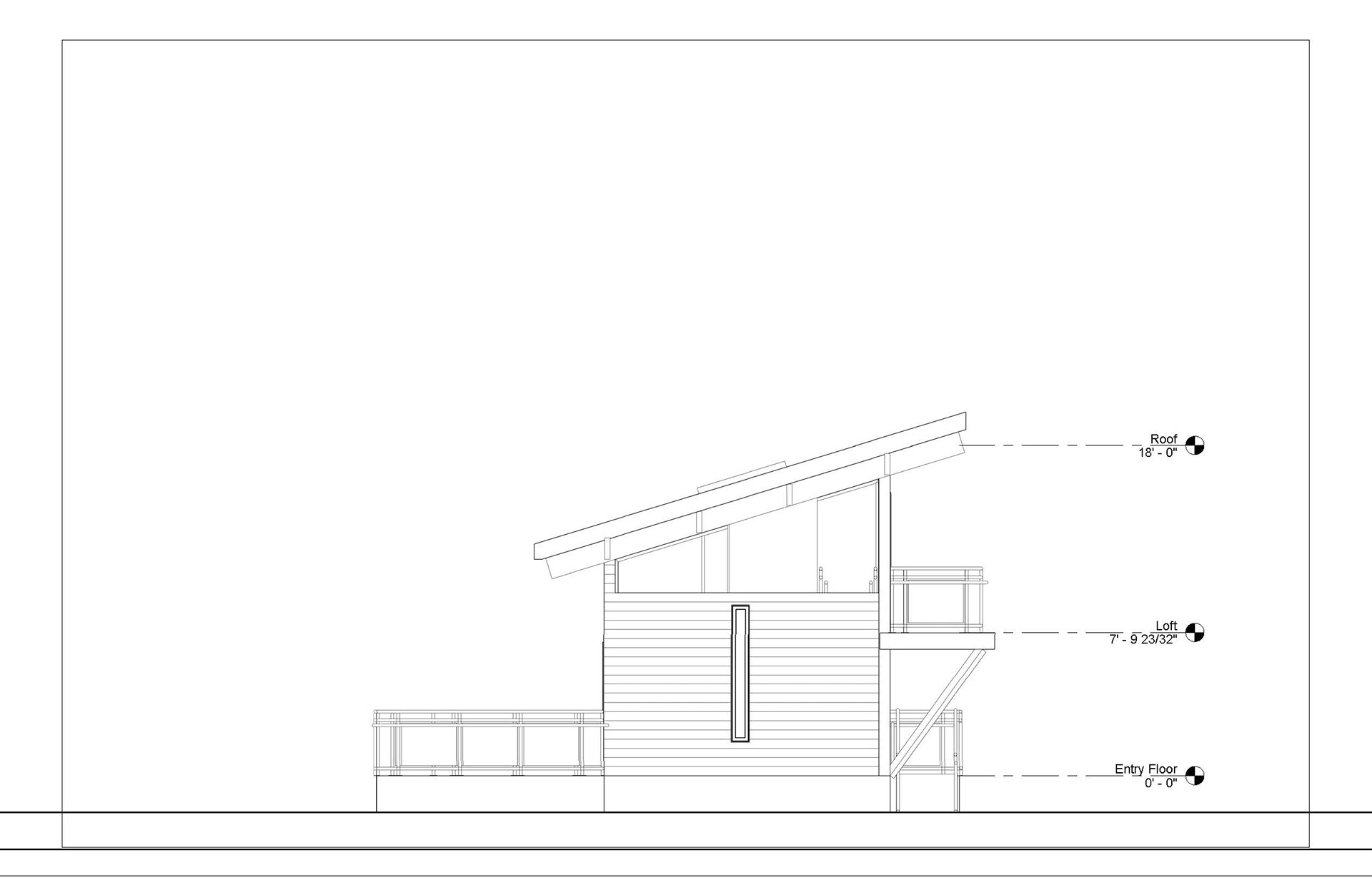

East Elevation

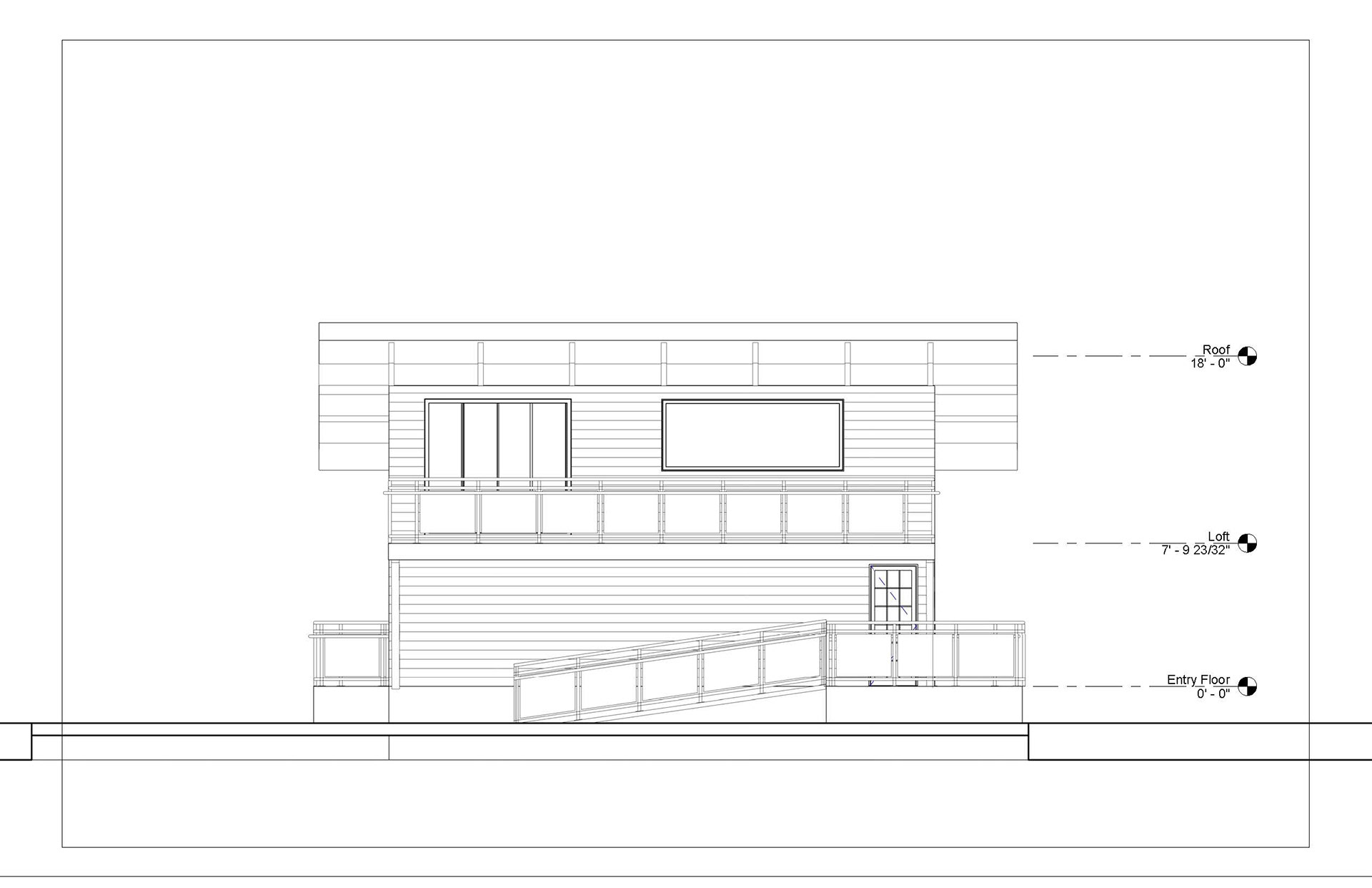

South Elevation
